Modular Skid-Mounted RO System for Island Resorts

Premium Water for Premium Guest Experiences

For luxury island resorts, water isn’t just a utility—it’s the lifeblood of the guest experience, from crystal-clear infinity pools to five-star culinary standards. Metalsin‘s Modular Skid-mounted RO System is engineered for resorts that require a permanent, high-output water source that fits within existing utility rooms. Unlike bulky containerized units, our skid-mounted design prioritizes a compact footprint, whisper-quiet operation, and modular scalability.

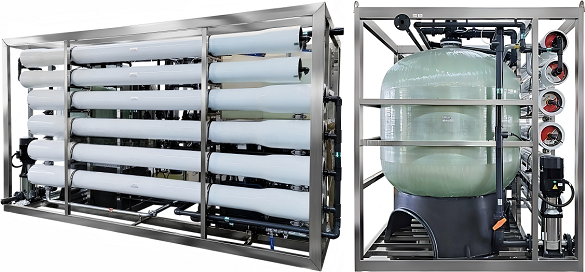

A typical modular skid-mounted seawater RO unit (front & side-view) for an island resort in Indonesia, with desalination capacity of 120 ton per day.

Metalsin‘s skid-mounted desalination technology serves as a comprehensive utility hub for high-end hospitality, delivering consistent, soft water for premium guest amenities like rain showers and luxury baths while ensuring high-purity ingredient water for gourmet kitchens and bars. Beyond guest-facing needs, the system maintains a reliable supply to sustain lush tropical landscaping and meet the specialized requirements of salt-chlorinated pools, ensuring every facet of the resort’s water demand is met with uncompromising quality.

Performance & Configuration Matrix

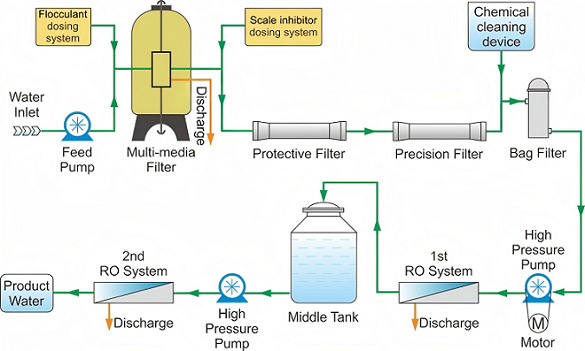

Modular Skid-Mounted RO Process Workflow

The desalination process begins with a high-performance feed pump directing raw water through a flocculant dosing stage and a multi-media filter to eliminate bulk suspended solids. To ensure peak membrane protection, the water is chemically conditioned with scale inhibitors and further refined through a sophisticated triple-layered filtration sequence—comprising protective, precision, and bag filters. This comprehensive pre-treatment removes fine contaminants and microorganisms, providing a perfectly clarified feed for the high-pressure purification stages.

Advanced double-pass reverse-osmosis (RO) Treatment sequence.

The system utilizes a double-pass reverse osmosis architecture to guarantee exceptional water purity. A motor-driven high-pressure pump forces the pre-treated water through the 1st RO System, with the resulting permeate stored in a middle tank for stabilization. A second high-pressure pump then cycles this water through the 2nd RO System, stripping away remaining ions to deliver high-grade product water. This entire modular workflow is supported by an integrated chemical cleaning device, allowing for seamless maintenance and ensuring long-term operational reliability in demanding environments.

Why Choose the Metalsin Modular Skid System?

Metalsin‘s skid-mounted systems are engineered with a space-saving modular architecture that prioritizes efficiency in premium resort utility areas. By utilizing a vertical-stacking design, these units maximize freshwater production per square meter, allowing operators to begin with a 50TPD configuration and seamlessly scale up as occupancy grows without over-investing in initial infrastructure. This flexibility is matched by a hygiene-first engineering approach, featuring polished SUS316L stainless steel for all frames and piping. This high-grade material ensures superior corrosion resistance against salty maritime air while maintaining a sterile, professional-grade environment that aligns perfectly with the strict hygiene protocols of luxury spas and high-end culinary facilities.

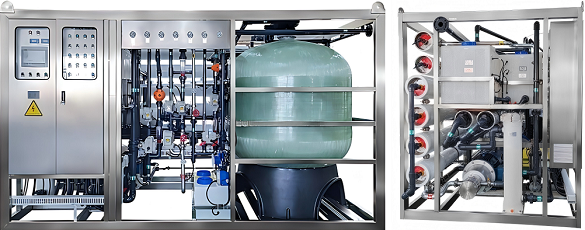

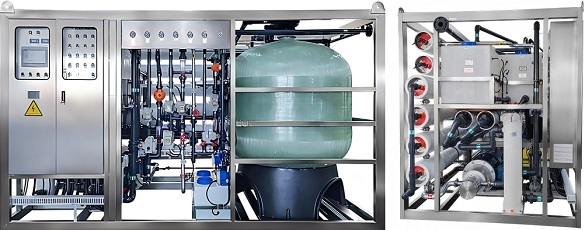

Layout of the modular skid-mounted RO system: RO membranes; filter tank; pumping system.

To preserve the resort’s tranquil atmosphere, the system is designed for whisper-quiet operation through advanced noise and vibration mitigation. Equipped with high-efficiency Danfoss pumps and industrial-grade anti-vibration mounts, the unit maintains a minimal acoustic signature, ensuring the “engine room” never intrudes upon the guest experience. This silent performance is paired with a cost-optimized “green” strategy; by integrating Energy Recovery Devices (ERD) that recycle up to 98% of hydraulic energy from the brine stream, Metalsin drastically reduces the total energy footprint. This efficiency not only slashes monthly utility costs but also supports resorts in achieving prestigious sustainability certifications, turning essential infrastructure into a powerful environmental marketing asset.
