Compact Seawater RO System for Yachts | Yacht Water Maker

Pure Fresh Water at Sea

A compact seawater RO system for yachts, also known as a yacht water maker, is a sophisticated desalination solution designed to transform raw seawater into high-quality potable water. Specifically engineered for the maritime environment, these systems utilize advanced reverse osmosis (RO) technology to ensure a continuous supply of fresh water while offshore.

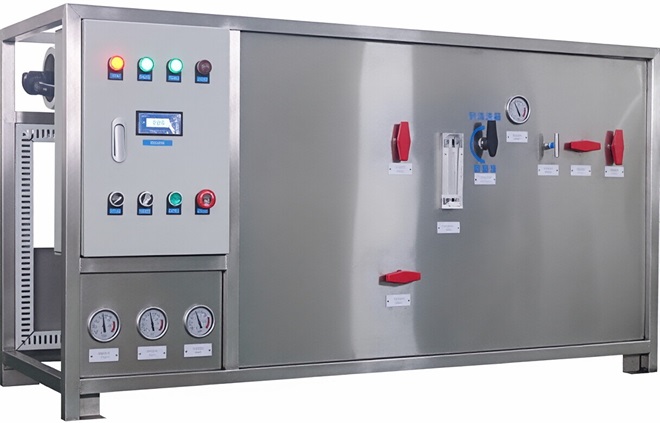

The front view of a compact horizontal seawater RO system: user-friendly interface and neat control panel, with a daily desalination capacity of 3 tons/day.

Metalsin‘s systems are characterized by their compact and skid-mounted architecture, which integrates all necessary components—pumps, membranes, and controls—onto a single, stable frame. To accommodate the unique layout of different vessels, we offer both horizontal and vertical configurations, allowing for seamless integration into even the most confined engine rooms or utility spaces.

Why Choose Metalsin‘s Yacht Seawater RO System?

Space-Efficient Skid-Mounted Design: Our “Plug-and-Play” skid-mounted design minimizes the installation footprint without compromising performance. By centralizing the filtration process, we reduce complex piping and ensure that the system is vibration-resistant and easy to maintain, making it the ideal choice for luxury yachts and private vessels.

High-Purity Water Quality: Leveraging industry-leading RO membranes, our systems achieve exceptional filtration accuracy. They effectively remove over 99.5% of salt, along with bacteria, viruses, and heavy metals. The result is crystal-clear, fresh water that meets international drinking water standards, ensuring the health and comfort of everyone on board.

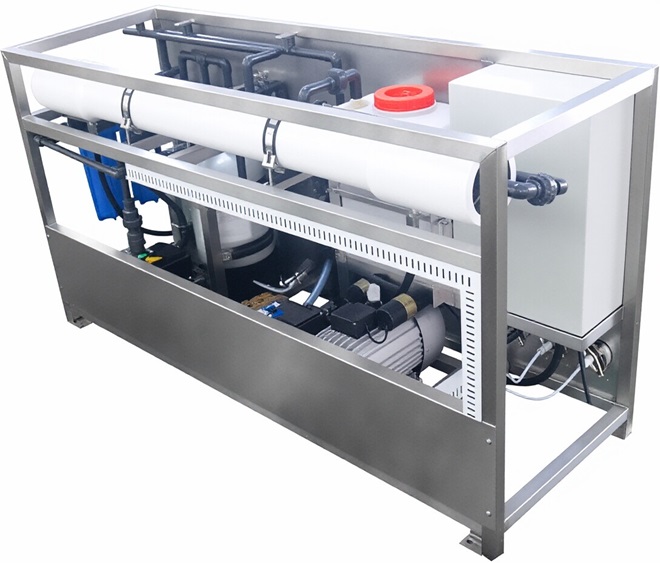

Internal components of the horizontal yacht water maker: electric cabinet, pressure gauge, flow meter, RO membranes, precision filter, multi-media filter, pumps, piping, rinse tank.

Superior Corrosion-Resistant Materials: Marine environments are incredibly harsh. Metalsin prioritizes longevity by using high-grade, corrosion-resistant materials throughout the system:

• SS 316L & Duplex SS 2507: High-pressure components and frames are built to withstand high-salinity spray.
• FRP & PVC: Used for membrane housings and low-pressure piping to prevent rust.
• Marine-Grade Coating: All external metal surfaces receive specialized treatment to ensure a long service life in salt-heavy air.

Compact SWRO Desalination Process for Yachts

The compact seawater RO system for yachts (yacht water maker) uses a streamlined and efficient desalination process designed for reliable onboard freshwater production. Seawater is first drawn through the inlet by a feed pump, where it passes through a multi-media filter to remove larger suspended particles and sediments. This pre-treatment stage is followed by a security filter and a precision filter, ensuring that fine impurities are effectively eliminated before entering the high-pressure stage.

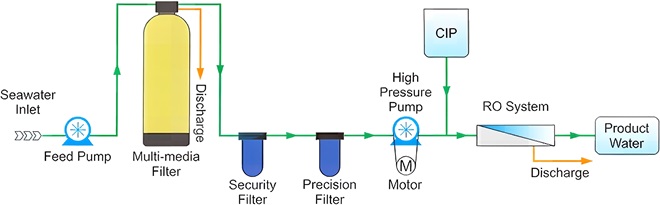

The seawater RO desalination workflow chart for Metalsin’s yacht water makers.

Next, a high-pressure pump boosts the filtered seawater to the required pressure for reverse osmosis. The pressurized water is then fed into the RO membrane system, where dissolved salts, bacteria, and other contaminants are separated. Fresh product water is collected for onboard use, while concentrated brine is discharged overboard. This compact, multi-stage filtration and RO process ensures high-quality freshwater output, energy efficiency, and long-term system durability—making it ideal for modern yacht applications.

Technical Specifications & Excellent Performance

Based on our rigorous engineering standards, the following table outlines the core parameters of Metalsin‘s yacht desalination units:

Built-In Safety and Automated Protection: The system is equipped with built-in safety and automated protection features to ensure reliable, hassle-free operation without constant supervision. It includes high and low pressure protection that automatically shuts down the system if operating conditions fall outside safe limits, such as insufficient feed water or excessive discharge pressure.

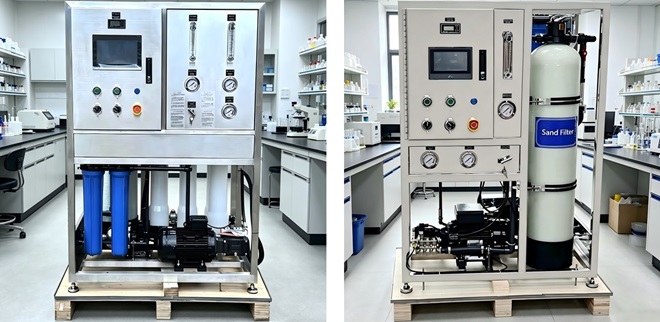

The vertical-pattern yacht water makers: skid-mounted seawater RO systems for ultimate marine freshwater solution.

An automated fresh water flush function rinses the membranes after each cycle to prevent scaling and extend their lifespan. In addition, real-time salinity monitoring via a conductivity meter ensures that only high-purity water is delivered to the storage tank, while off-spec water is automatically rejected. All functions are managed through a user-friendly PLC control system, enabling one-button start/stop operation and providing clear system status alerts.
