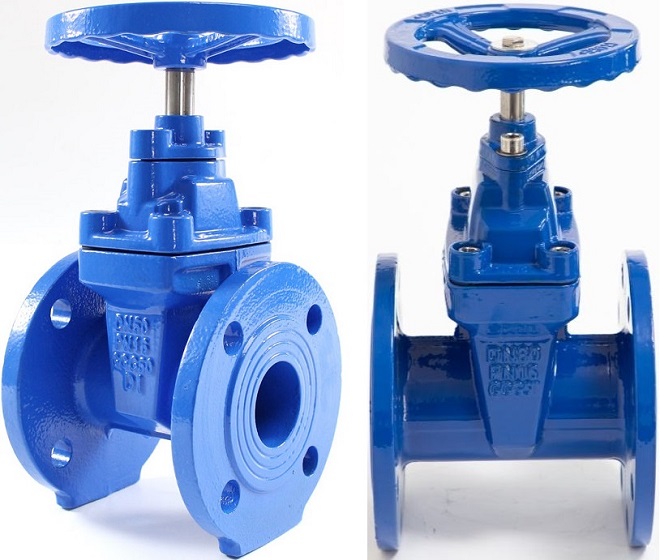

Ductile Iron NRS Gate Valves with A2/A4 SS Bolts for Waterworks

Technical Overview & Premium Engineering

In modern municipal water supply, drainage, and wastewater treatment infrastructure, reliability is the paramount criteria for pipeline component selection. The ductile iron NRS gate valves with A2/A4 SS bolts for waterworks stand as an industry benchmark of heavy-duty engineering, purposefully designed to eliminate the most vulnerable failure point in traditional valves: exterior fastener corrosion.

Ductile iron gate valves furnished with A2/A4 stainless steel bolts for bolted connection between body and bonnet. Designed to EN 1074-2, BS 5163; Face-to-face dimensions to EN 558 Series 3; Fusion bonded epoxy coating on both interior and exterior.

While standard market alternatives often cut costs by utilizing zinc-plated or carbon steel fasteners, this premium resilient-seated Non-Rising Stem (NRS) gate valve features uncompromised stainless steel hardware across all critical interfaces. Specifically, the internal recessed socket head cap screws (socket bolts) that securely seal the bonnet to the valve body, as well as the robust hexagonal bolts (hex bolts) securing the operating handwheel or cap to the valve stem, are fabricated entirely from top-tier A2 (Grade 304) or A4 (Grade 316) austenitic stainless steel. This comprehensive, non-corrosive fastening matrix ensures that the valve body remains perfectly sealed and fully operable throughout its extended lifecycle, completely eliminating the risk of bolt-shearing, fluid leakage, or catastrophic joint relaxation.

Engineered for seamless integration into international fluid networks, these valves are strictly designed, manufactured, and tested in accordance with rigorous global waterworks standards:

• Design & Performance: EN 1074-1, EN 1074-2, EN 1171, and BS 5163 / DIN 3352.
• Face-to-Face Dimensions: EN 558 (Series 3 / Series 14 / Series 15).
• Application Scope: Potable water distribution, raw water transmission, urban drainage, pumping stations, and industrial water treatment systems.

Decoding A2 and A4 Stainless Steel Fastener Standards

To appreciate the structural integrity of these gate valves, it is essential to understand the standardized classification of their stainless steel fasteners. According to the international standard ISO 3506-1 (which governs the mechanical properties and chemical compositions of corrosion-resistant stainless steel fasteners), austenitic stainless steels are categorized into distinct classes:

• A2 Stainless Steel (Equivalent to AISI 304 / EN 1.4301): The alphanumeric code designates the steel group (“A” for Austenitic) followed by the chemical composition grade (“2”). A2 steel contains approximately 18% Chromium (Cr) and 8% Nickel (Ni). It exhibits excellent general corrosion resistance, high ductility, and remains non-magnetic in its annealed state. Under ISO 3506, these bolts typically comply with Property Class 70 (denoted as A2-70), ensuring a minimum tensile strength of 700 MPa.
• A4 Stainless Steel (Equivalent to AISI 316 / EN 1.4401): Representing a premium structural grade, A4 steel modifies the classic 18-8 composition by introducing 2% to 3% Molybdenum (Mo). This precise chemical modification significantly enhances the material’s resistance to localized chemical attacks, specifically pitting and crevice corrosion in harsh ion-rich environments. A4 bolts are specified for high-load, high-corrosion areas and provide superior mechanical endurance. Similarly, A4 bolts are further classified as A4-70 and A4-80 according to its minimum tensile requirements.

The Strategic Imperative of A2/A4 Fasteners in Water Infrastructure

In municipal water distribution, a valve’s external environment is frequently far more hostile than the clean media flowing through its bore. Waterworks gate valves are regularly deployed in chambers that are perpetually damp, subject to seasonal flooding, or buried directly underground within corrosive soils.

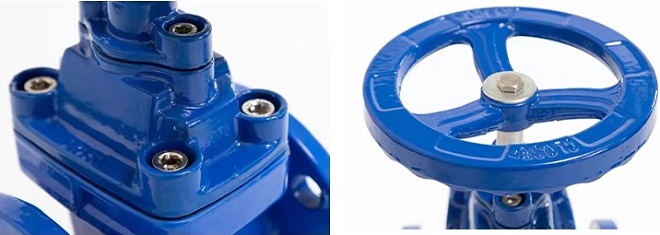

The utilization of A2-70 (SS304) hex socket cap screws for bolted bonnet and hex bolt for handwheel connections.

If a standard carbon steel bolt rusts, it expands. This volumetric expansion cracks the protective fusion-bonded epoxy (FBE) coating of the ductile iron body, triggering rapid, localized galvanic corrosion that degrades the valve body and leads to unresolvable system leakage. The integration of A2 and A4 stainless steel bolts acts as a structural insurance policy for the valve’s 30- to 50-year design life, but their selection must be aligned with specific working conditions:

When to Utilize A2 (SS 304) Fasteners:

A2 stainless steel bolts represent the standard engineering specification for typical domestic and municipal water infrastructure projects. They offer exceptional protection against atmospheric humidity, condensation, and standard soil chemistries found in inland distribution networks. For general potable water supply lines, urban drainage networks, and water treatment plants under normal operating environments, A2 bolts provide robust corrosion protection while remaining highly cost-effective for large-scale procurement.

When to Upgrade to A4 (SS 316) Fasteners:

A4 (SS316) fasteners should be specified for ductile iron gate valves in aggressive service environments where chloride exposure or chemical corrosion risk is elevated, as the molybdenum content in A4 steel provides superior resistance to localized pitting and corrosion. Typical applications include coastal and marine areas exposed to sea mist or saline groundwater, desalination and RO facilities handling seawater or brine, wastewater and industrial treatment plants with exposure to H₂S, organic acids, or chemicals, and buried pipelines in high-salinity, marshy, or chemically aggressive soils where lower-grade fasteners may corrode prematurely.

By pairing premium WRAS-approved EPDM resilient wedges and high-thickness fusion-bonded epoxy coatings with A2 or A4 stainless steel fasteners, our ductile iron NRS gate valves deliver unmatched durability, drastically reducing operational maintenance budgets and preventing unexpected downtime in critical water pipelines globally.
