Containerized Seawater Desalination Plant for Remote Island Communities

Overview: The Ultimate Solution for Island Water Scarcity

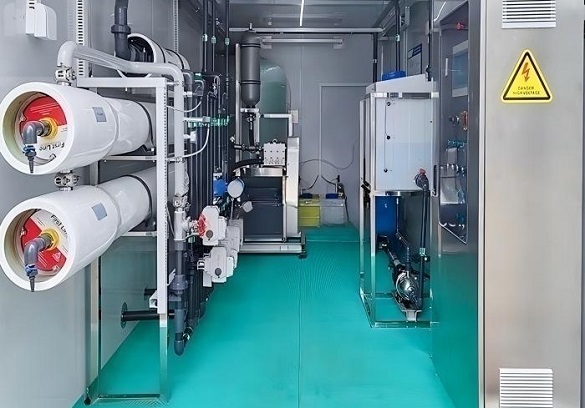

A typical containerized seawater R.O. desalination plant supplied to Djibouti, Africa, featuring a desalination output of 75 cubic meters per day (75 tons/day).

For remote island communities, luxury resorts, and coastal construction sites, the lack of natural freshwater is a critical challenge. Metalsin’s Containerized Seawater Desalination Plant is engineered as a fully integrated, reverse-osmosis desalination solution. Housed in standard 20ft or 40ft ISO containers, these units provide a mobile, high-capacity freshwater source that can be deployed rapidly and operated with minimal local infrastructure.

From Seawater to Safe Drinking Water: Process & Applications

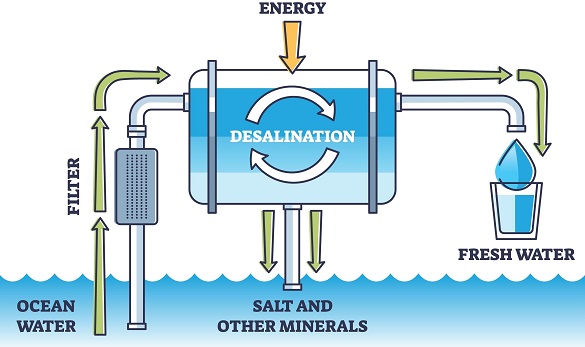

The typical seawater reverse osmosis processing flow chart.

The containerized SWRO system converts seawater into safe drinking water through a streamlined process: it begins with intake and pre-treatment using flocculation and multi-media filtration to remove solids and algae, followed by double-stage microfiltration to fully protect the RO membranes. High-pressure reverse osmosis, powered by high-performance pumps and premium membranes, separates salts, and the water is then enhanced through mineralization and UV sterilization for taste and safety. This solution is ideal for remote island communities, eco-resorts and hotels seeking sustainable water sources, and offshore work camps requiring a reliable supply.

Design Features & Technical Specifications

Plug-and-Play Integration & Rapid Deployment: Every containerized seawater reverse-osmosis system is housed within a standard 20-foot or 40-foot ISO container, optimized for seamless international export and effortless onsite positioning. To ensure immediate functionality, all units are factory-pre-debugged. Upon arrival, the system requires only basic connection to external piping and power; once started, it delivers stable, high-purity water instantly. This modular design significantly reduces civil engineering costs and simplifies long-term facility management.

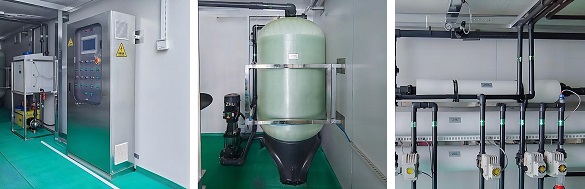

Typical components of a containerized SWRO desalination system: electric cabinet, multi-media filter, precision filter.

Advanced Automated Protection & Maintenance: Safety and system longevity are prioritized through a sophisticated, automated control suite: Dual-Pressure Protection: The system features automated high-pressure unloading (triggered at 6.2MPa) and low-pressure shutdown (triggered at 0.05MPa). Both protocols include audible and visual alarms to prevent pump cavitation or membrane damage. Integrated Maintenance Systems: Pre-treatment is managed via multi-way valves supporting high-flow backwashing. Furthermore, a built-in Clean-In-Place (CIP) device allows for streamlined physical and chemical cleaning of the RO modules, maintaining high permeate flux and extending membrane life.

Industrial-Grade Components & Materiality: Metalsin leverages a premium global supply chain to deliver systems with a 15–20 year lifespan, using top-tier membranes from DOW (Filmtec), Toray, or Hydranautics, paired with high-efficiency high-pressure pumps and Schneider-based electrical controls. Its corrosion-resistant design features stainless steel (SS316L or Duplex 2507) or high-strength FRP for all critical structures, ensuring durability in harsh marine environments, while broad voltage and frequency compatibility (220V–440V / 50–60Hz) enables reliable operation worldwide.

Why Metalsin’s Containerized System?

• Rapid Deployment & Minimal Civil Work: Unlike traditional land-based plants, our containerized units require no permanent building construction. The system arrives pre-piped, pre-wired, and fully tested. Once on-site, it only requires feed water intake, power connection, and a product water outlet to begin production.
• Advanced Energy Recovery Technology: Operating a desalination plant on a remote island can be energy-intensive. Metalsin integrates advanced Energy Recovery Devices (ERD) that capture hydraulic energy from the brine stream and feed it back into the system, reducing total power consumption by up to 35%.

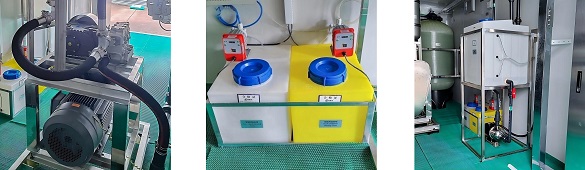

Typical components of a containerized SWRO desalination system: high-pressure pump, dosing unit, rinse tank.

• Extreme Durability in High-Salinity Environments: Remote islands are harsh environments. We utilize SS316L or Duplex 2507 for all high-pressure piping and fittings. The interior of the container is equipped with industrial HVAC and insulation to protect the high-precision electrical components from salt spray and humidity.
• Smart Operation with Remote Monitoring: Designed for areas with limited technical personnel, the integrated Siemens PLC system allows for one-touch start/stop and automated chemical cleaning (CIP). The system can be equipped with remote monitoring modules, allowing your team or our engineers to troubleshoot performance via the cloud.
