SANS 664 NRS Gate Valves with Cap Top for South African Waterworks

For water utility engineers and contractors in South Africa, selecting the right valve configuration is just as critical as meeting the SANS/SABS 664 standard. While handwheel-operated valves have their place in pump stations, the vast majority of municipal water distribution networks rely on a specific champion: the NRS (Non-Rising Spindle) Gate Valve with Cap Top.

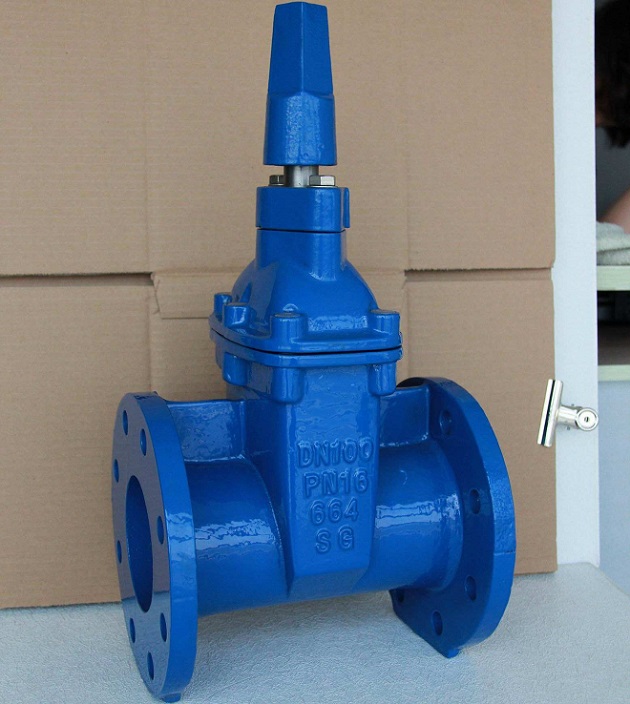

SANS/SABS 664 ductile iron NRS flanged gate valve with cap top operation.

At Metalsin, we specialize in supplying high-grade ductile iron valves tailored for the South African market. Today, we explore why the Cap Top design (specifically designed for T-key operation) is the industry standard for underground installations.

Understanding the Configuration: Cap Top vs. Handwheel

In the context of SABS 664 specifications, confusion sometimes arises regarding operation methods. To clarify:

• Handwheel: Used for above-ground installations where the valve is easily accessible at chest or waist height.
• Cap Top (Stem Cap): This is a robust, square-shaped cap fitted directly onto the valve stem. It is designed to be operated by a T-key (or T-bar).

When you order a Metalsin SANS 664 gate valve with cap top, you are getting a valve ready for burial. The cap top acts as the interface between the valve mechanism deep underground and the operator on the surface.

Why the Cap Top & T-Key Combination is Essential?

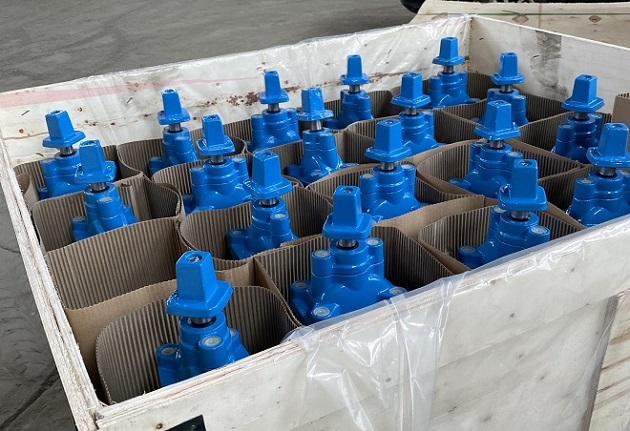

SANS/SABS 664 cap ton gate valves for municipal waterworks supplied to Cape Town, South Africa.

Why do Johannesburg, Durban, and Cape Town municipalities specify this configuration?

• Optimized for Underground Reticulation: Most potable water pipelines in South Africa are laid underground to protect them from traffic and temperature fluctuations. An NRS valve with a Cap Top is compact. It eliminates the bulk of a handwheel, allowing the valve to fit inside standard manholes or surface boxes with ease.
• Easy Operation via Extension Spindles: Deeply buried water pipes require extension spindles. The square design of the Stem Cap provides a secure, slip-free connection point for extension rods. This allows maintenance teams to open or close the valve from street level using a standard T-key, without ever needing to enter a confined space.
• Security and Tamper Resistance: Water theft and infrastructure vandalism are genuine concerns. A large handwheel is easy for unauthorized persons to turn. In contrast, a Cap Top valve buried under a surface box requires a specific tool (the T-key) to operate. This adds an essential layer of security to the water network.

The Metalsin Advantage: Built for Durability

At Metalsin, we don’t just meet the standard; we understand the application. Our SANS 664 cap top gate valves are engineered to withstand the harsh conditions of South African soil.

• Material: High-strength Ductile Iron (GGG50) for both the body and the cap top itself, ensuring the cap doesn’t crack under high torque.
• Corrosion Protection: Fusion Bonded Epoxy (FBE) coating, strictly applied to 250 microns, ensuring longevity even in aggressive soil conditions.
• Resilient Seal: The fully EPDM-encapsulated wedges ensure a drop-tight shut-off, fully compliant with SABS 664 leakage tests.

Whether you are sourcing valves for a new housing development in Gauteng or a replacement project in the Western Cape, choosing the right operation method is key. For underground reliability, the Cap Top NRS Gate Valve is the professional’s choice. Metalsin is ready to support your projects with high-quality, SANS-compliant valves delivered directly from our manufacturing facility.
