EN 558 Series 14 (DIN 3352 F4) Large Diameter Gate Valves

Product Overview & Design Features

Metalsin’s large-diameter resilient seated NRS gate valves are designed and manufactured in full compliance with EN 558 Series 14 (equivalent to DIN 3352 F4) — the European standard defining the face-to-face dimensions and construction characteristics of resilient-seated gate valves for waterworks and pipeline systems. Series 14 (F4 type) specifies a short-pattern design, ensuring compact installation where space is limited while maintaining full bore flow and reliable sealing performance.

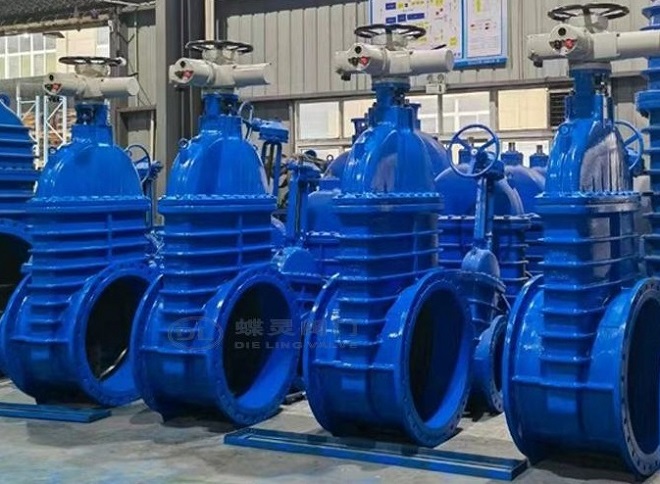

Ductile iron NRS resilient seated gate valves, EN 558 Series 14 (DIN F4) FF, DN750 PN10 double flanged ends, electric motor actuated, supplied to Papua, Indonesia.

The valves feature flanged ends in accordance with EN 1092-2, PN10 and PN16, providing dimensional compatibility and easy integration into standard pipeline networks worldwide. Each valve is also fitted with a provision for a bypass interface, facilitating pressure equalization across the gate and enabling smoother operation for large-diameter valves. Constructed with a ductile iron body, fully vulcanized EPDM wedge, and fusion-bonded epoxy coating, the valve delivers excellent corrosion resistance, low operating torque, and long service life. Designed for potable water, wastewater, and general water distribution systems, it ensures tight shut-off, high reliability, and full compliance with international water industry standards.

Technical Specification

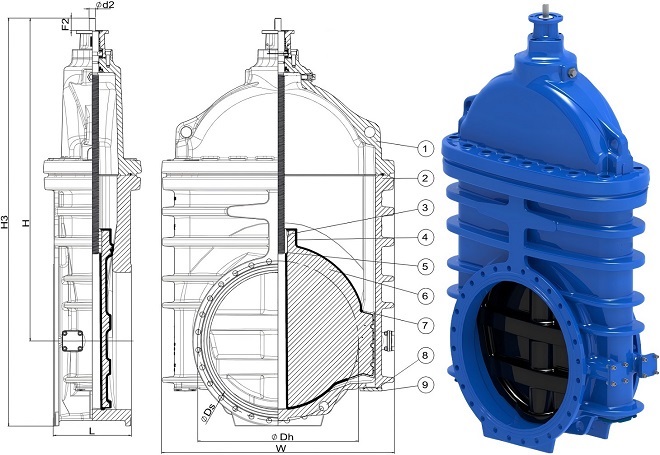

The typical drawing & picture of a large OD gate valve, face-to-face dimensions made to EN 558 Sereis 14 (DIN 3352 F4), non-rising stem, EN 1092 flanged, for sizes DN700~DN1000.
