EN 12334 Dual Plate Wafer Check Valves

At Metalsin, we supply ductile iron dual-plate wafer check valves, made in accordance with EN 12334, to waterworks applications. Dual-plate wafer swing check valves are a specialized type of check valve that combine a compact, wafer-style design with a dual-plate swing mechanism to offer improved sealing and performance in one-way flow applications. These valves have the following design features:

• These valves are designed to sit directly between two pipe flanges, making them very thin and space-saving. The pipe flanges should be made to EN 1092 PN10/PN16, AS 2129 Table E, JIS B2212 10K, BS 10 Table D/E.
• The key structural feature is the presence of two spring-loaded plates (or discs) mounted on a central hinge pin. The two plates work in tandem; when fluid flows in the correct direction, both plates swing open, and when reverse flow occurs, they close simultaneously for a tighter seal.
• Both the body & disc are made from ductile iron material, which is a robust and economical cast iron suitable for waterworks applications. The valve body incorporates a machined seating surface, lined with EPDM rubber and aligned with the discs for tight sealing.

Technical Specifications

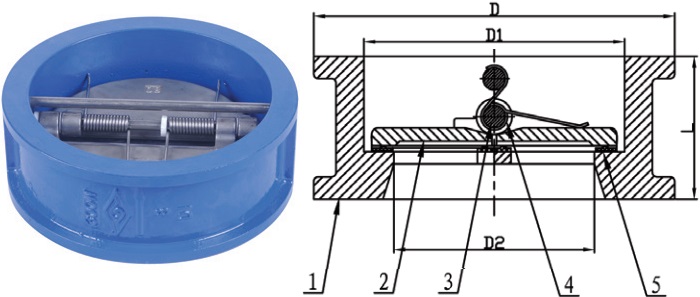

The typical photo and drawing of the dual plate wafer check valve, made to EN 12334, ductile iron.
