Straight Pipe Repair Clamps for D.I. Pipelines

December 23, 2025

Product Overview

Metalsin’s Ductile Iron Straight Pipe Repair Clamps provide a standard, highly reliable solution for the emergency repair of leaks in straight sections of ductile iron and grey cast iron pipelines. To ensure a precise fit for various damage scales, we offer these standard fittings in multiple lengths for every nominal pipe diameter.

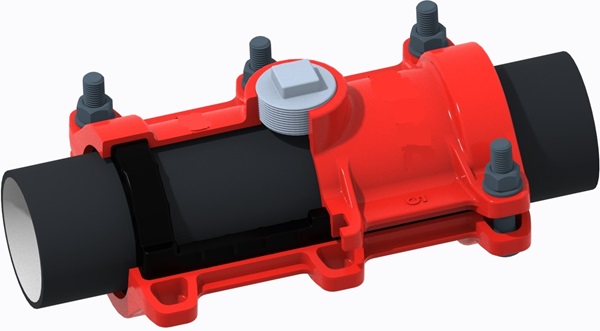

The use of pipe repair clamp in d.i. pipelines.

Illustration Picture: the used of straight pipe repair clamp in the ductile iron pipeline.

ComponentMaterial Grade
BodyEN-GJS-450-10
QT450-10
ASTM A536 65-45-12
Sealing GasketsEPDM/NBR
BoltsCarbon Steel Grade 8.8
ASTM A193 Gr.B8
NutsCarbon Steel Grade 8
ASTM A194 Gr.8
Vent PlugMalleable Iron
*Components & material grades of the D.I. straight pipe repair clamps.

Drawing, Sizes & Dimensions

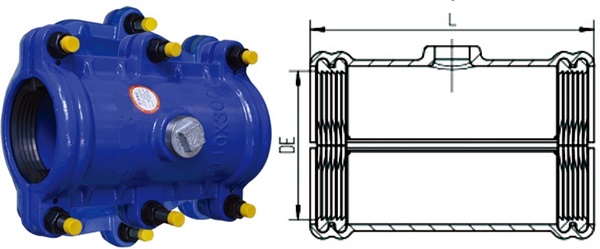

picture & drawing of straight pipe repair clamp.

The product photo & technical drawing of straight pipe repair clamp for the D.I. pipeline.

DN x L
mm		Pipe O.D.
50 x 30066
65 x 30082
80 x 20098
80 x 25098
80 x 30098
80 x 35098
80 x 50098
100 x 200118
100 x 250118
100 x 300118
100 x 350118
100 x 500118
100 x 1000118
125 x 300144
150 x 200170
150 x 250170
150 x 300170
150 x 350170
150 x 500170
150 x 1000170
200 x 200222
200 x 250222
200 x 300222
200 x 350222
200 x 500222
200 x 1000222
250 x 200274
250 x 250274
250 x 300274
250 x 350274
250 x 500274
250 x 1000274
300 x 200326
300 x 250326
300 x 300326
300 x 350326
300 x 500326
300 x 1000326
350 x 200378
350 x 500378
350 x 1000378
400 x 200429
400 x 300429
400 x 500429
400 x 1000429
450 x 500480
450 x 1000480
500 x 300532
500 x 500532
500 x 1000532
600 x 500635
600 x 1000635
700 x 500738
700 x 1000738
800 x 500842
800 x 1000842
900 x 500945
900 x 1000945
1000 x 5001048
1000 x 10001048
1200 x 5001255
1200 x 10001255
1400 x 5001462
1400 x 10001462
1600 x 10001668
*Sizes, length (L), and pipe O.D. of straight pipe repair clamps for D.I. pipes from DN 50 to DN 1600.

Ductile Iron Repair Clamp
For D.I. PipesBell Joint RepairTight Space Repair
Double-Socket Collar RepairStraight Pipe Repair
For Plastic PipesBell Joint RepairCompact Joint Repair
Double Socket JointStraight Pipe Repair
Axially Restrained RepairB.W. PE Joint Repair
Tee Joint RepairReducer Joint Repair
90° Elbow Repair45° Elbow Repair
For Steel PipesFlange Joint RepairCoupling Joint Repair
Union Joint RepairTee Joint Repair
Elbow Joint RepairStraight Pipe Repair
Grooved Joint RepairGas Joint Repair
For Concrete PipesBell Joint RepairStraight Pipe Repair
*Click to view ductile iron repair clamps for various piping conditions.
