EN 558 Series 3 (BS & ISO) PN10/16 Flanged NRS Gate Valves

Product Overview

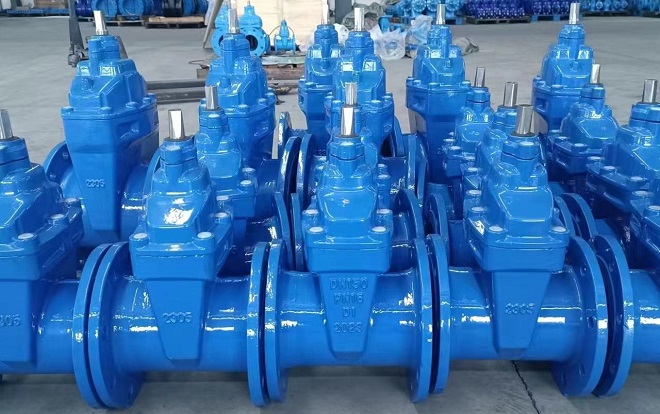

Non-rising stem ductile iron gate valves, EPDM resilient seated, face-to-face (FF) dimensions to EN 558 series 3, DN150 PN16, supplied to Surabaya, Indonesia.

Metalsin‘s NRS (non-rising stem) resilient-seated gate valves are designed for potable water and wastewater treatment applications, offering reliable shut-off performance and long service life. Manufactured in accordance with EN 558 Series 3 (equivalent to BS 2080 and ISO 5752), these valves feature standardized face-to-face dimensions for easy installation and interchangeability. They are flanged to EN 1092-2 with PN10/16 pressure ratings, ensuring compatibility with common pipeline systems used in water distribution & wastewater treatment networks.

Design Features

• Fully vulcanized wedge and wedge nut with WRAS-approved EPDM rubber, ensuring outstanding durability and elastic recovery.
• Double-bonded vulcanization process and robust wedge design provide superior resilience and long-term sealing performance.
• Full-bore design for minimal flow resistance and reduced pressure loss.
• Stainless steel stem with rolled threads and integrated wedge stop for high strength and precise operation.
• Ductile iron body offering excellent mechanical strength and impact resistance.
• Fusion-bonded epoxy coating (interior and exterior) in accordance with AWWA C550 and DIN 3476, providing long-lasting corrosion protection.

Drawing, Parts & Material, Sizes, Dimensions & Weight

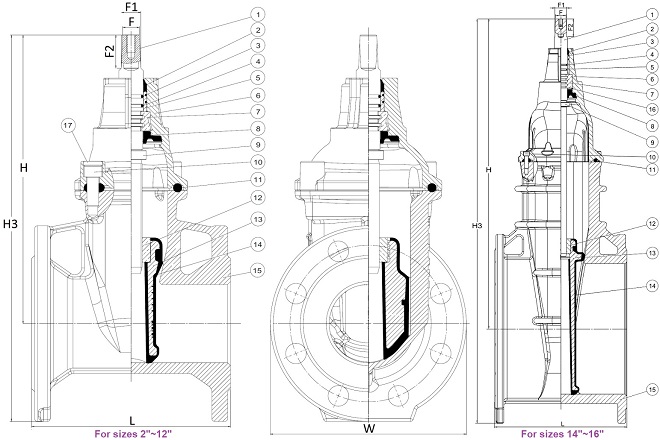

Drawing of NRS gate valves with EN 558 Series 3 FF dimensions. Designed and tested in accordance with EN 1074 Parts 1 & 2, BS 5163, BS 5150 / EN 1171. Flange drilling: EN 1092, PN10/16. Maximum operating temperature: 70°C. Hydraulic test pressures: Seat: 1.1 × PN (bar) & Shell: 1.5 × PN (bar).
