NB-IoT Smart Water Meters

What Is A NB-IoT Smart Water Meter?

The NB-IoT smart water meter is a remote metering device based on Narrow Band Internet of Things (NB-IoT) technology.

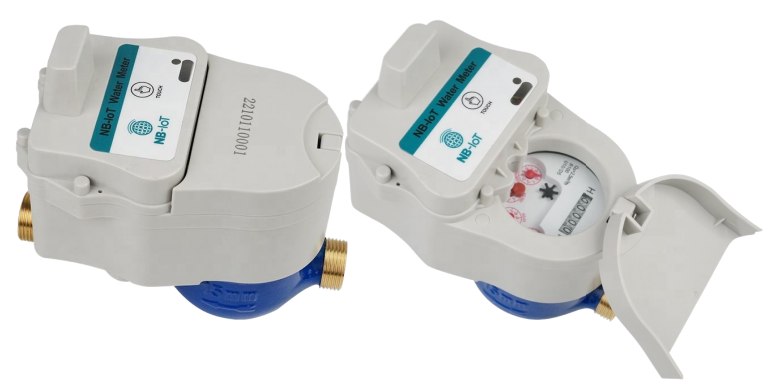

NB-IoT smart water meters supplied by metalsin.

It enables wireless communication for remote data transmission, offers a high protection rating up to IP68, and covers a wide diameter range—from small-caliber household models (DN8, DN15) to medium and large industrial or municipal types (DN50, DN250, DN300 and above). The meter is available in various materials such as cast iron, 304 stainless steel, and brass, and supports threaded or flanged installation. Depending on the environment, it can feature either a dry dial (magnetically coupled, waterproof, fog-resistant) or a wet dial (simple structure, clear reading), providing flexibility for both indoor and outdoor use. With functions such as automatic metering, remote valve control, real-time communication, and fault alarm, NB-IoT smart water meters are a core technology in modern smart water management systems for residential, commercial, and municipal applications.

Technical Parameters and Structural Composition.

NB-IoT smart water meters are designed to meet diverse application needs, with specifications ranging from DN8 and DN15 for residential use to DN600 for large-scale network and industrial installations. Large-diameter models can handle flow rates up to 40 m³/h, with an operating pressure range of 0.1 MPa–1.0 MPa and a protection level of IP68. The meters comply with ISO 4064 Class B standards. Structurally, the device integrates a controller, NB-IoT communication module, (optional) motorized valve, and data acquisition/storage unit on top of a traditional mechanical base. Communication is achieved directly through the operator’s NB-IoT network (e.g., LTE Cat NB) without requiring a local gateway. Powered by a built-in lithium battery with ultra-low standby current (≤ 8 μA), the meter supports multi-year maintenance-free operation with reliable, low-power performance even in remote locations.

Working Principle and System Functionality.

When water flows through the meter, the mechanical or electronic base converts the flow rate into electrical pulse signals, which are collected and processed by the controller. The controller digitizes the data and transmits it via the NB-IoT module to a cloud-based platform or utility management system, enabling real-time monitoring, usage analysis, and remote control functions such as valve operation, arrears-based shutoff, or abnormal event alarms.

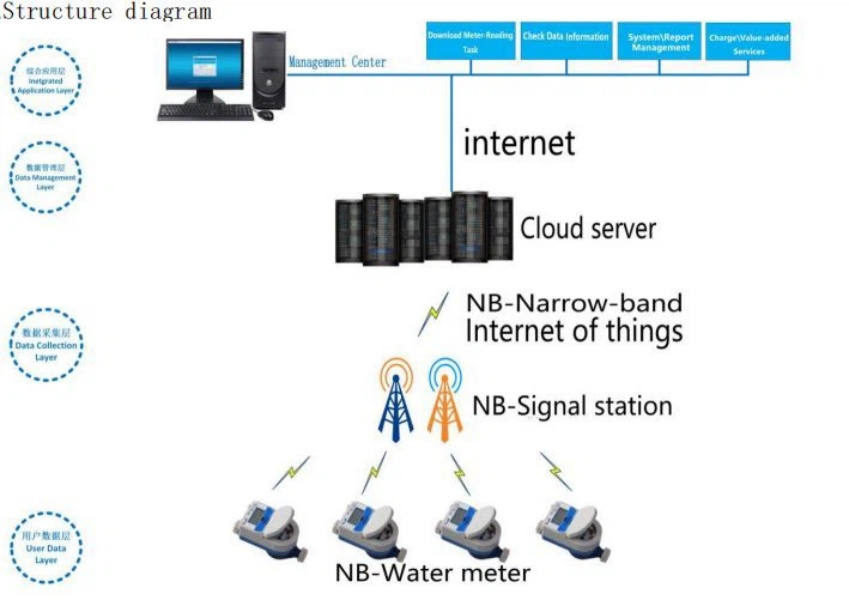

Working principle: water meter, NB-IoT wireless transmission, cloud monitoring & analysis, remote control feedback

The system emphasizes low power consumption, deep signal coverage, high reliability, and long battery life, ensuring stable operation in residential, commercial, and municipal networks alike. By integrating accurate measurement, data communication, and remote management, the NB-IoT smart water meter significantly enhances water utility efficiency and supports the digital transformation of urban water systems.
